ITINEO

SB740

TRAVELLER
Profil Itineo ITINEO SB740
  • + Children bedroom with possibility of 3 berths
  • + Up to 7 berths (in option)
  • + Rear bedroom dinette bed converts into 2-person bed
  • + Bunk beds
  • + Double wardrobe
  • + 5th registered seats as a standard(1)
  • + KIDDY-NEO: making your kids happy with their own separate space
  • + 150-litre refrigerator with automatic energy control
  • + Living room converts to occasional berth (130 x 200 cm) (option)

SB740

Implantation Jour ITINEO SB740

7,43 m

Implantation Nuit ITINEO SB740

Want to know more about the SB740 ? Watch our video about this model:

5(1) Number of seats

8 Number of dining seats

5 Number of possible sleeping spaces

20 L / 120 L

120 L

(1) Possible reduction of the number of registered seats depending on the engine/gcw (essential for installation harness)/accessories (like door-motorcycle).

SB740 - TECHNICAL DETAILS

KG

STORAGE AREA DIMENSIONS (OVERALL)
Length   7,43
Width   2,35
Width with wing mirrors extended   2,68
Height   2,94
Number of seats (vehicle certificate)   5*
Number of dining seats   8
Number of possible sleeping spaces   5
Gross vehicle weight (kg)   3500
Gross vehicle weight (GVW) (kg)   / **
Unladen weight in running order (MIRO)   3054
Load capacity   446
Chassis   FIAT
Engine   2,3 L - 140 ch
Anti-pollution standard   Euro 6d-temp
Wheelbase (mm)   4035
Extra wide rear track (mm)   1980
BED SIZES (cm)
Double bed   -
Bunk beds (Bunk beds)   2x(81x217)
Single beds   -
Living space single bed (twin beds) converts to XXL bed   -
Dinette bed   x 52x200 + x 130x200 (b)
Cab bed   140x190
GARAGE DIMENSIONS (mm)
Width   830
Length   2170
Height (as specified)   775/1550
Access right side (H x W)   1100x600
Access left side (H x W)   x 550x600
CONSTRUCTION
ITINEO LIFE construction   x
Polyester front panels   x
100% Polyester protection roof   x
Polyester underfloor   x
Fibre-reinforced polyurethane structural components   x
Styrofoam insulation (roof, wall and floor)   x
Storage area with lowered polyester floor   x
BODYWORK AND OPENINGS
Central locking on cab and living area doors   x
Transparent skylights with fly-screen & privacy curtain   x
Panoramic living room skylight   x
Double glazed windows with polyurethane frame and blind/ flyscreen combination   x
Flyscreen door   P
Comfort cab door with bay + 2 locking points + integrated wastebin   P
Skylight - Cab bed   x
Storage space left side access hatch
5
x
Electric step   P
Manually retractable door steps   -
Exterior sliding storage drawer (volume 45L, max weight 25kg)
18
x
HEATING
TRUMA Combi 4 combined water-air heating unit   x FR
TRUMA Combi 6 combined water-air heating unit   x FR / x EXP
TRUMA Combi 6 EH (gas and electricity) hot water/heating combo with CP PLUS heating control panel and iNet
1
x / x RHD
Heater maintenance access door   x
230V underfloor heating in living area
7
x
Insulated, heated waste water tank
15
x
STYLE
Fabric/TEP* upholstery style: PEPPER   x
Fabric/TEP* upholstery style: NATURAL   x
Upholstery style: CAPPUCINO   x
Living area interior lighting    LED
Ambient lighting in the living room/kitchen/bedroom   LED
Bay window net curtain   x
LIVING ROOM
Furnishings with overhead cupboard door in metallic glossy white   x
Night/day living space separating door   -
Dual day/night diving partition   x
Face-to-face bench seat armrests   -
Right side bench armrest   x
3-point safety belt(s) in living space   x
Carpet kit living area and cab
11
x
5th seat (vehicle certificate) avaible + telescopic table leg +
15
-
Telescopic table leg
3
x
Folding table
1
x / RHD
TV space with wiring setup and TV mount   x
KITCHEN
Stainless steel sink with bright black glass cover   x
Stove top with 2 stainless steel inline hobs, separated covers and piezo ignition   x / - RHD
Stove top with 3 stainless steel inline hobs, separated covers and piezo ignition   x / x RHD
Laminated worktop   x
Lighting under the worktop   LED
Pan storage in the kitchen   x
Backlit acrylic strip on side of kitchen   x
Combination spice rack and kitchen towel holder   x
Fridge with automatic energy selection   150
Fridge grill covers (for winter use)   x
Oven with grill
15
x 20 L / x 20 L RHD
Oven without grill
15
-
BATHROOM

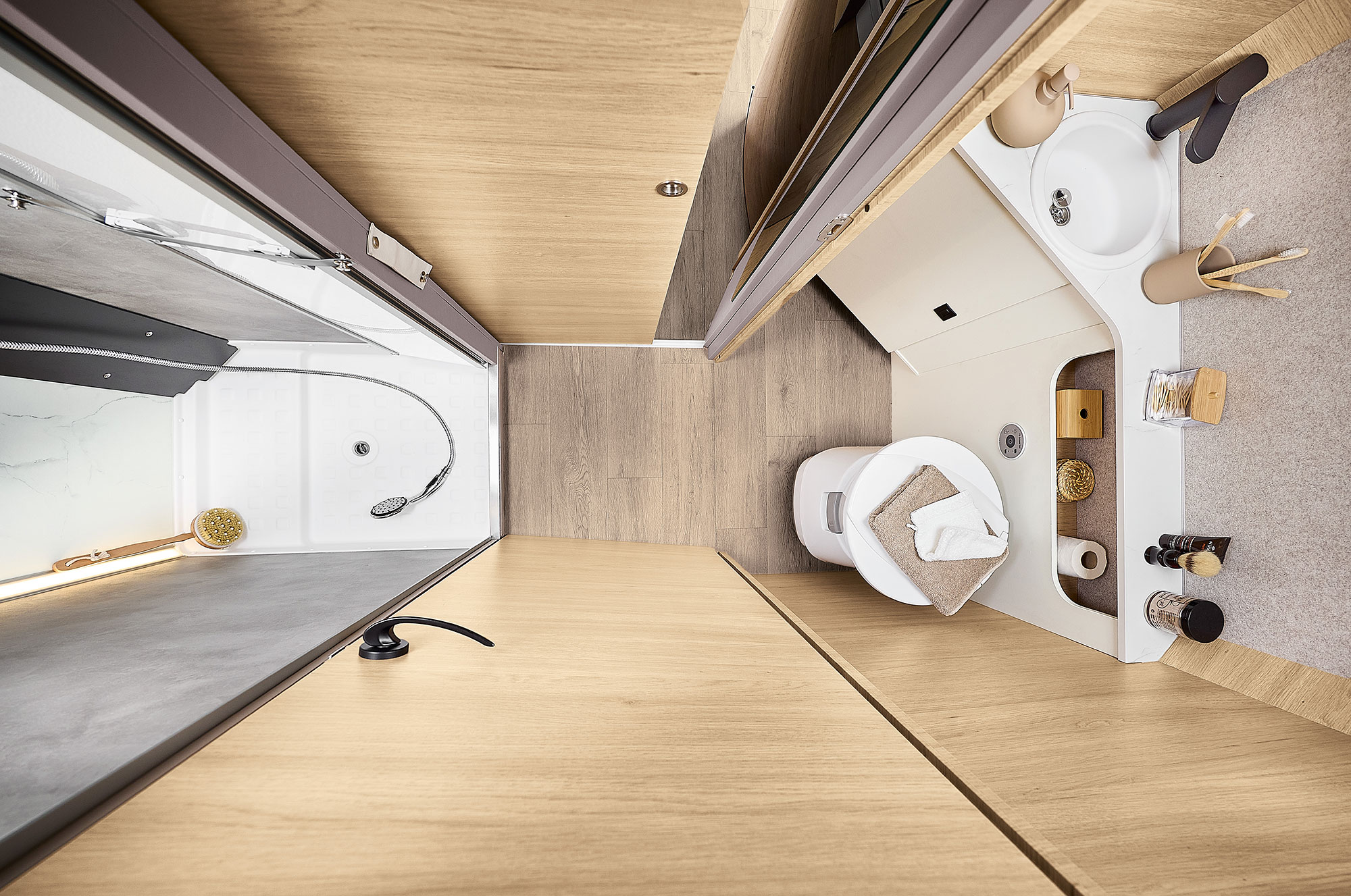

Bathroom with separated shower   x
Hanging rail/clothes drying rack   x
Shower column with black laminate finish and inbuilt storage   x
High storage unit with mirror    x
Backlit storage alcove under basin   x
Chromium-plated bathroom accessories   x
Ceramic cistern camping toilet with removable tank (19 litres), telescopic handle and castors   x
BEDROOM
Permanent bed with aluminium base frame and slats, with highly durable BULTEX® foam mattress   x
Permanent electrically height-adjustable bed (≈ 30 cm) 15 -
Retractable central bed base   -
Adjustable reclining headboard on permanent bed in sofa position   -
Storage at the foot of the bed   -
TV space with pre-wired 12V - HDMI   -
TV space with HDMI wiring setup and TV mount   -
LED projector with large screen and electric remote + Subwoofer with speakers + Multimedia center 6,2" 7 -
KIDDY-NEO: day/night divider with slate finish + 3-colour detachable rug set   x
Storage area hatch insulating curtain in rear bedroom 1 x
ENERGY & COMFORT
Semi-stationary auxiliary battery with coupler and separatof   100Ah
Cutting transformer - charger   x
Magneto-thermal circuit breaker 30 mA differential   x
Centralised fuse box with protected “accessories” outlets   x
Control panel   x
External 230 V connection   x
Internal 230 V sockets   3
Internal 12 V sockets   4
Internal 5V USB port   1
Space for 3rd battery   x
Solar panel wiring setup   x
Truma automatic inverter, enabling you to travel with the heating on (crash protection system)   x
External lighting above the living area door   LED
Coming home mode with automatic awning light and interior mood lighting   x
WATER
Freshwater tank (litres)   20/120 (d)
Waste water tank (litres)   120
Electric water pump   x
Control dipstick for clean/waster water tank   x
Outside shower set-up   x
Outside shower with hot/cold water   x
CARRIER EQUIPMENT
Driver Air-bag   x
Passenger airbag   x
Power steering   x
ABS brakes   x
Cruise control   P
Coach-style electric outside rearview mirrors   x
Electric defrosting on side mirror   P
Wheel repair kit   x
TPMS : type pressure monitoring system   x
Hubcap   x
ESC with ASR (traction control), ROM (roll over mitigation) and hill start assistance P
Traction+ with Hill Descent Control   x / x RHD
Automatic 9-speed gearbox (requires 16" rims and ECO PACK)
58/15***
x
Fiat 15" lightweight alloy rims
-5
x
Fiat 16" lightweight alloy rims (vehicle height +4,5cm depending on basic chassis)
12
x
35L chassis = Possible GVW 3650 kg (= heavy goods)   x
HEAVY Chassis: GVW 4.4T, 140hp, 160hp and 180hp
40
x
2.3-litre 140 hp engine (weight of 140 hp/120 hp) (only available with LIGHT chassis)   x
2.3-litre 160 hp engine with ECO PACK (weight of 160 hp/140 hp)
20
x
2.3-litre 180 hp engine with ECO PACK (weight of 180 hp/160 hp)   x
AdBlue® tank (litres) 19
ECO PACK: Stop & Start and boosted 200 Amp alternator (standard for 160 hp and 180 hp; not available for 120 hp)
3
x
75-litre diesel tank   x
LED day running lights   P
100% LED front lights   x
Front fog lamps
1
x
Towbar (2) (masse option+/-5kg)
70
x
Motorcycle rack (2) (masse option+/-5kg)
85
x
Towbar + motorcycle rack (2) (masse option+/-5kg)
110
x
Bike rack inserts installed on rear wall   x
Stabilising jacks (rear)
5
x
CAB EQUIPMENT
Cab bed with slat bed-frame and jack-assisted retraction   x
Swivelling height adjustable cab seats with integrated seat belt   x
«CAPTAIN CHAIR», adjustable height, revolving, adjustable armrests   x
Cab seats in the same fabric as in the living area   x
Cup holders   x
Manual cab air conditioning   P
Automatic air-con in living space
1
x
Leather steering wheel and gear knob    x / x RHD
Chrome-ringed instruments   x / x RHD
Tinted living-space windows and windshield as standard   x
Double glazed cabin bays
10
x
Electric window on Cabin door   x
PIONEER® USB car radio with BLUETOOTH®   x
Reversing camera (with sound & night vision) + Double-DIN DIVX MP3 multimedia centre
4
x
Reversing camera (with sound & night vision) + Double-DIN DIVX MP3 multimedia centre    P
NAVIGATION pack: navigation system + multimedia centre with 6.2" screen
2
x
Insulating external cab blinds
5
x
Wrap-around pleated fabric cab blind   x
Insulating, double pleated windscreen and cab window roller blinds
7
x
Suction-grip, heat-insulating internal cab blinds
1
x
Mechanical wind-down sunshade   x

x Standard equipment | x Optional equipment | - Equipment not available | P : Pack / FR : France | RHD = RIGHT HAND DRIVE special pack (UK, Ireland and New Zealand customers only) | EXP : Export

Technical specifications and features contained in this brochure are meant as indications. Neither the factory nor the dealers are in no way responsible for possible variations in the product during the season.

* : Reduction possible vehicle certifcate according to engine / GVW / GCV (essential for attaching trailer)/Accessories (bike carrier type).
** : GCW = 5500kg possible with reduction of 1 place Registration Certificate.
*** : 2,3 L 140 ch : 58 kg 2,3 L 160 ch ou 180 ch : 15 kg
(1) : PTRA suppression possible depending on option 5th driving place (vehicle certifcate) or engine.
(2) : Max 2000 kg subject to GCW / Permitted seating capacity can be reduced. The technically permissible maximum laden mass is specified in the certification for the completed vehicle. Depending on the trailer attached to the vehicle and the manufacturer’s specifications for the trailer and fifth wheel, the maximum permissible mass of the trailer + load may be less. The strength of the trailer and fifth wheel (values D and S in particular) are shown on a plate fastened to them. Value D is used to calculate the Maximum Permissible Mass pulled by the tractor, as follows: MPM =( DxTx1000)/[(Tx9.81)-(1000xD)], where T = max mass of vehicle (GVW) (in kg) and D = value (in kN) shown on the trailer. The maximum mass of the vehicle (in kg) is therefore less than or equal to the MPM for a maximum permissible laden weight of the vehicle which can be up to 2000kg.
(a) : Height +50 mm with chassis HEAVY 16” wheels.
(b) : Optional additional bed depending on telescoping stand option.
(c) : Not compatible with the LED projector with large screen and electric remote option
(d) : The freshwater tank can be filled up to 120 liters (TC 740: 110 liters). This increase results in a reduction of load capacity.

Itineo Fiat chassis is different from Fiat Original commercial FIAT / carrier. Accessories fitted as an option are not included when determining the weight of the vehicle. The weight of accessories is to be deducted from the load capacity.
