ITINEO COSY PJ700 NEW

Profil Itineo ITINEO PJ700

You will love

  • Forward-facing bench seat with height-adjustable headrests
  • 5 berths, including 3 optional berths:
    - Inbuilt electric double drop-down bed (130/120 x 196 cm)
    - Living room converts to single occasional bed (125/55 x 200)
  • Twin beds (80 x 195 cm + 67 x 190 cm) convert to XXL bed (195/190 x 220 cm)
  • Wardrobe at the foot of the bed
  • Large 142-litre AES refrigerator with bottle drawer
  • Kitchen worktop extension
  • 5th berth and registered (driving) seat available as optional features
  • Large 120cm-high storage area

PJ700

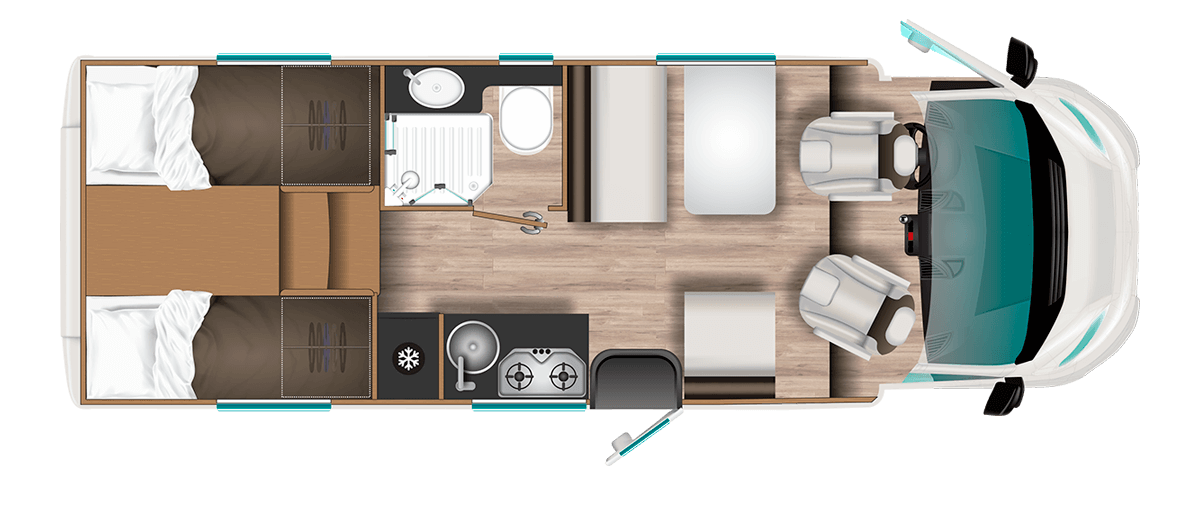

Implantation Jour ITINEO PJ700

7,00 m

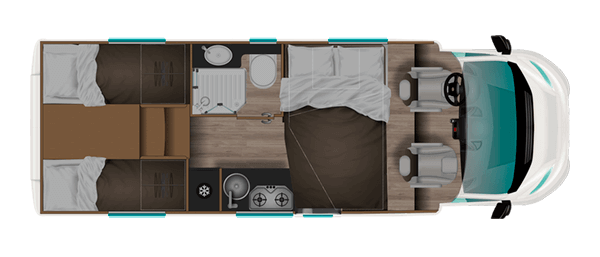

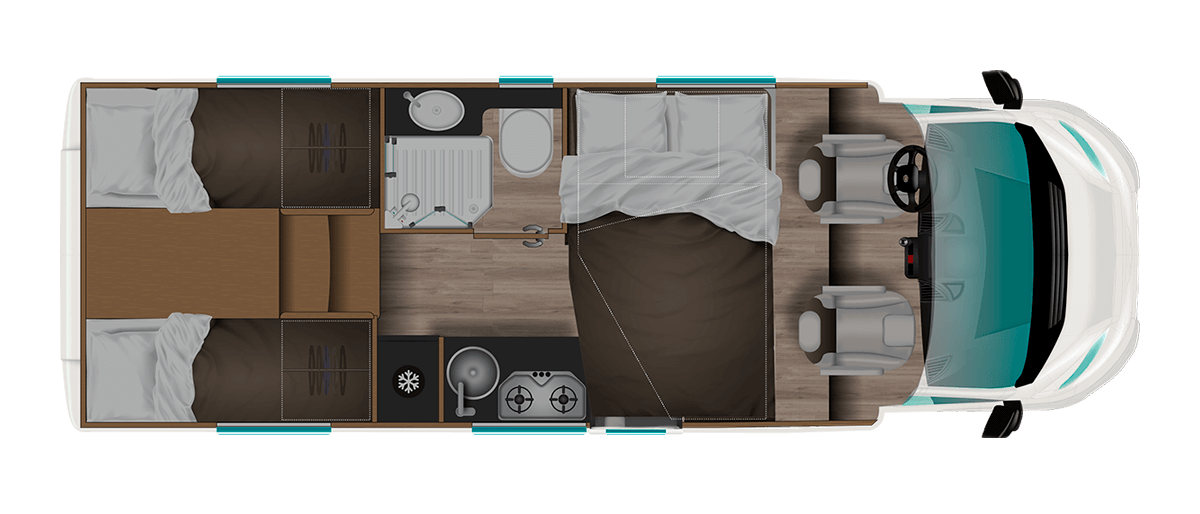

Implantation Nuit ITINEO PJ700

360 : visit the motorhome PJ700 !

4 (+1 OPT) Number of seats

5 Number of dining seats

2 (+2 +1 OPT) Number of possible sleeping spaces

20 L / 100 L

100 L

PJ700 - TECHNICAL DETAILS

KG
PJ700
DIMENSION (overall in metres)
Length   6,99
Width   2,32
Width with wing mirrors extended   2,35
Height   2,99
SEATS
Registered (driving) seats   4 (+1 OPT)
Dining seats   5
Berths   2 (+2 +1 OPT)
WEIGHT (kg)
Gross vehicle weight (GVW)   3500
Gross combination weight (GCW)   5500 (1)
Unladen weight in running order (MIRO)   2980
Payload   520
CHASSIS
Chassis   CITROËN
Engine equipment   2,2 L - 140 ch
Anti-pollution standard   Euro 6.2D
Wheelbase (mm)   3800
Extra-wide rear track (mm)   1980
BED SIZES (cm)
Living space double bed   -
Living space single bed (twin beds)   (80 x 195)
+ (67 x 190)
Living space single bed (twin beds) converts to XXL bed   195/190 x 220
Convertible dinette bed   x 125/55 x 200
Drop-down bed   x 130/120 x 196
STORAGE AREA DIMENSIONS (overall in mm)
Width   923
Length   2200
Height   1197
Access right side (H x W)   700 x 1110
Access left side (H x W)   700 x 1110
CONSTRUCTION
Polyester outer panels   x
Polyester roof protection   x
Polyester underfloor   x
Styrofoam insulation (roof, wall and floor)   x
Insulated storage area with sandwich panel technology   x
BODYWORK AND OPENINGS
Designer rear pillars with LED lights   PE
Transparent skylights with blackout blind and flyscreen   x
Double-glazed windows with blinds and flyscreen   x
Living area flyscreen door   PL
Living area door with 2-point locking, fixed window, inbuilt bin and remote locking   x / PE
Panoramic opening cab roof   PL
HEATING
TRUMA COMBI 4 hot water/heating system with CP PLUS heating control panel   x
TRUMA COMBI 6 hot water/heating system with CP PLUS heating control panel   x
TRUMA Combi 6 EH (gas and electricity) hot water/heating combo with CP PLUS heating control panel and iNet 1 x
Hot water/heating maintenance access panel   x
Heated waste water tank   x
STYLE
Fabric/TEP* style: NATURAL   x
Living area interior lighting   LED
Ambient lighting in the living room/kitchen/bedroom   LED
Bay window net curtain   x
LIVING ROOM
Polyester-coated interior walls   x
Electrically adjustable, switchable drop-down bed with slat base   x
Furnishings with overhead cupboard door in metallic glossy white   x
Dual day/night divider   -
3-point retractable safety belts in living area   x
Cab + living area carpet kit 11 x
5th berth and registered (driving) seat 2 x
Folding table 1 -
TV space with 12V coaxial wiring   x
KITCHEN
Stainless steel sink   x
Stainless steel 2-hob stove with glass cover   x
Stainless steel 3-hob stove with glass cover   -
Laminated worktop   x
Worktop extension   x
Refrigerator with automatic power selection and double doors (in litres)   142
Oven with grill 15 -
Four sans grill 15 x 23 L
WASHROOM
Separate shower and toilet   -
Hanging rail/clothes drying rack   x
Shower column with black laminate finish and storage   x
Toilet with removable cassette, telescopic handle and castors   x
BEDROOM
Storage alcoves at the foot of central bed   -
TV space with HDMI wiring   -
POWER & COMFORT
Semi-stationary auxiliary battery with coupler and separator   x
Cut-out charger - transformer   x
Centralised fuse box with accessory outlets   x
Control panel   x
External 230 V plug   x
Internal 230 V plug   2
Internal 12 V plug   1
Internal 5V USB port   4
External lighting above the living area door   PL
WATER
Drinking water tank (litres)   20/100 (a)
Waste water tank (litres)   100
Electric water pump   x
Control gauge for drinking and waste water tanks   x
BASE VEHICLE FITTINGS
Driver airbag   x
Passenger airbag   PL
Power steering   x
ABS braking   x
Cruise control with limiter   PL
Wing mirror de-icing   PL
Puncture repair kit   x
TPMS (automatic tyre pressure monitoring system)   PL
ESC with Traction+ and Hill Descent Control   PL
Reinforced rear axle suspension   x
16" Citron steel rims   PL
16" Citron light alloy rims 2 x
AdBlue® tank (litres)   20
2.2 litre 165 hp BlueHDi engine 5 x
Stop & Start   PL
Rain sensor   PL
Light level sensor   PL
Front fog lights   PL
Bodywork-colour cab door handles   PL
Bike rack set-up   x
CAB FITTINGS
« Captain chair » height-adjustable swivel cab seats with adjustable armrests   PL
Cab seat covers that match the living area style   PL
Cup holders   x
Manual cab air conditioning   PL
Leather steering wheel and gear knob   PL
Chrome-ringed instruments   PL
Vehicle-standard tinted cab windows and windscreen   x
Cab doors with electric windows   x
Central locking on cab doors   x
Reversing camera (with night vision and sound) + 2DIN DIVX MP3 multimedia system incorporating camera screen 4 x
Reversing camera (with night vision and sound) + 7" colour screen in cab   PE
GPS navigation 2 x
Cab blind   x
Cab interior isothermal suction pad blinds   x

x Standard fittings | x Optional fittings (additional cost) | - Not available | PL : Pack LIFE | PE : Pack ELITE

* : TEP: Polyamide-coated fabric

(1) : GCW may be reduced depending on 5th registered (driving) seat or engine option.

(a) : The tank can be filled to a capacity of 100 litres. Increased capacity reduces the payload.

The technically permissible maximum towable mass of the motor vehicle is a piece of information associated with the approval of the completed vehicle. Based on the towbar that will be mounted on the vehicle and specific values given by the manufacturer of the towbar and the tow ball, the maximum trailer mass that the vehicle can pull may be less. The characteristics of towbar and tow ball resistance (in particular values D and S) are engraved on a plate affixed to it. The value D gives the maximum authorized mass for the towbar (MAM) with the following calculation: MAM = (DxTx1000)/[(Tx9.81)-(1000xD)], with T = maximum vehicle mass (GVW) (in kg) and D = value (in kN) indicated on the towbar. The maximum trailer mass (in kg) is thus less than or equal to the MAM for a maximum towable mass of the vehicle, which may be up to 2,000 kg.
