MotorhomeITINEO COSY PC640 NEW

Profil Itineo ITINEO pc640

You will love
the motorhome PC640

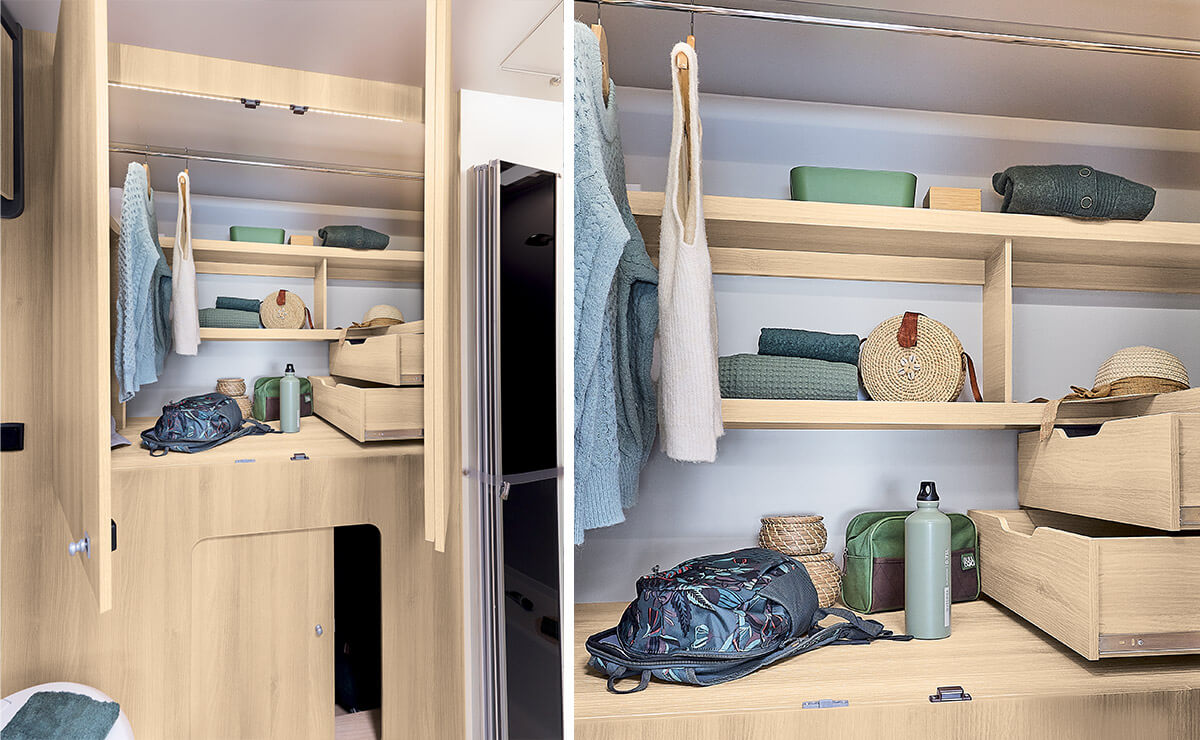

  • XXL wardrobe storage
  • Large 118 cm-high full-width storage hold

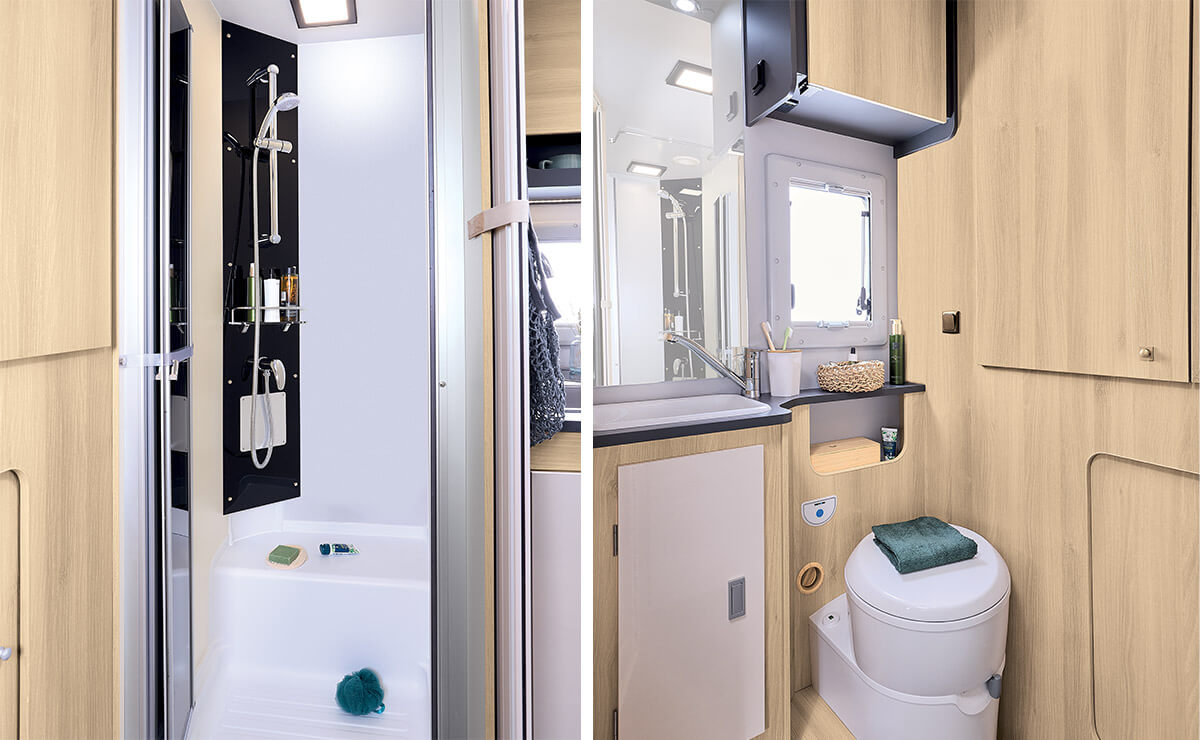

  • Large private rear bathroom
  • Combi Diesel hot water/heating

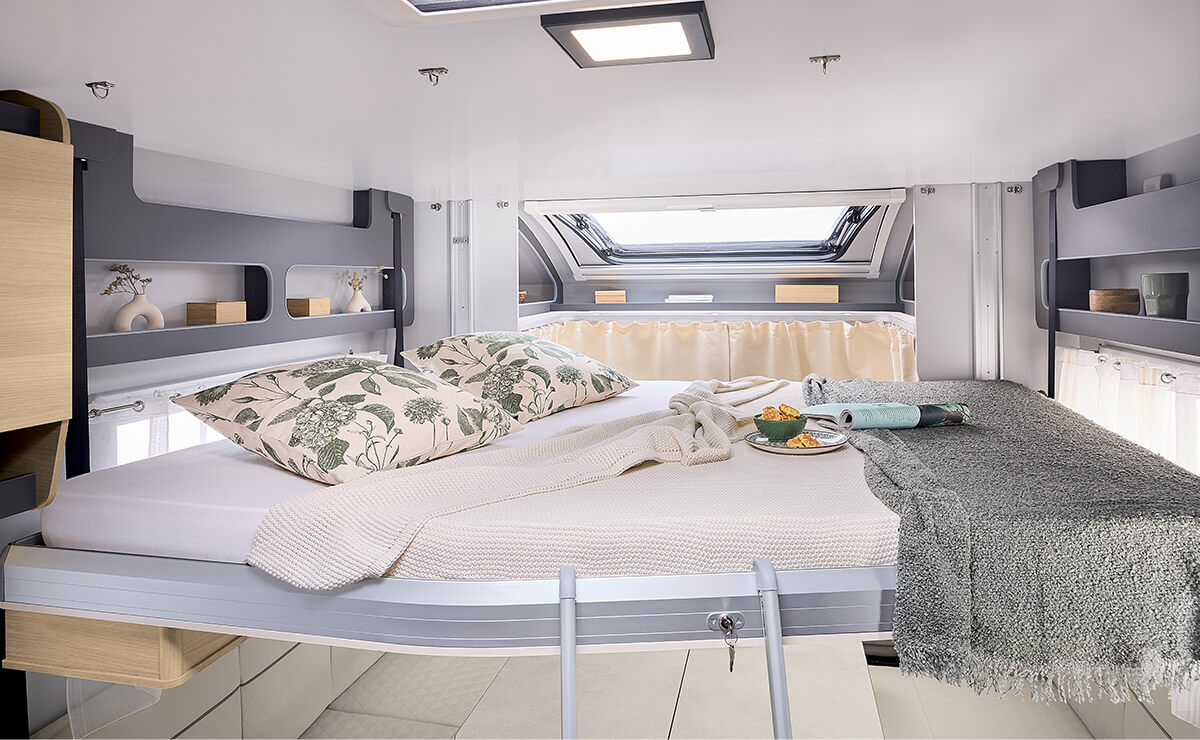

  • Inbuilt 2-berth electric drop-down bed as standard (149/125 x 192 cm)
  • Storage hold access from the bathroom
  • More info on the SPIRIT EDITION limited series

PC640
in pictures

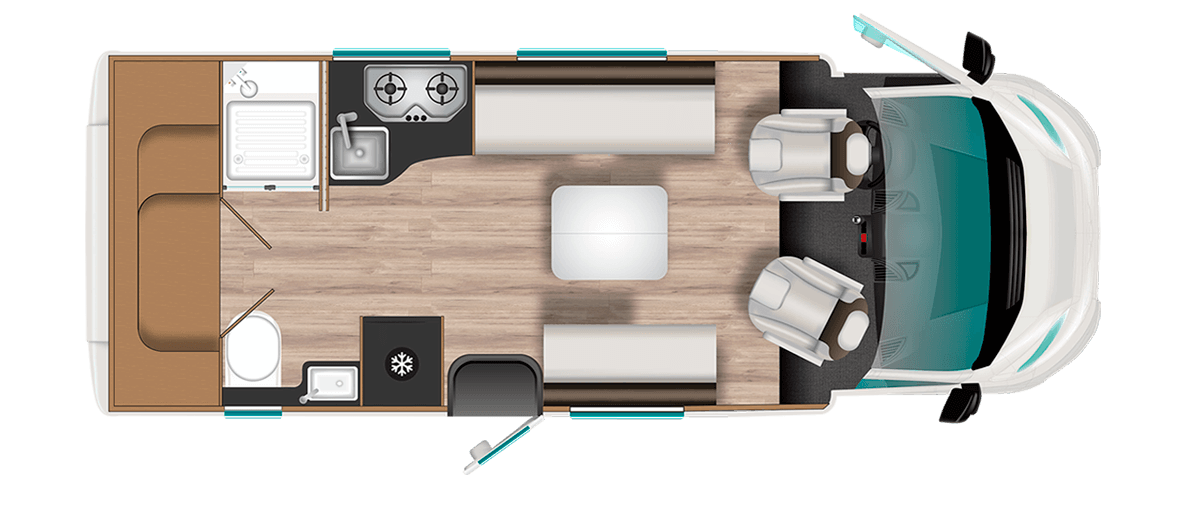

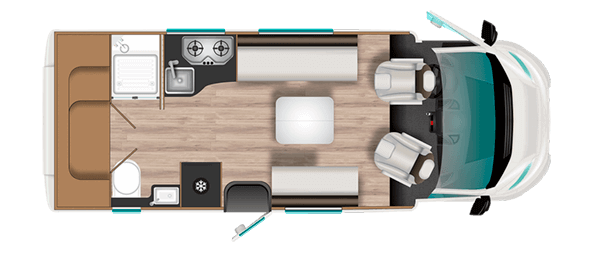

Implantation Jour ITINEO pc640

6,36 m

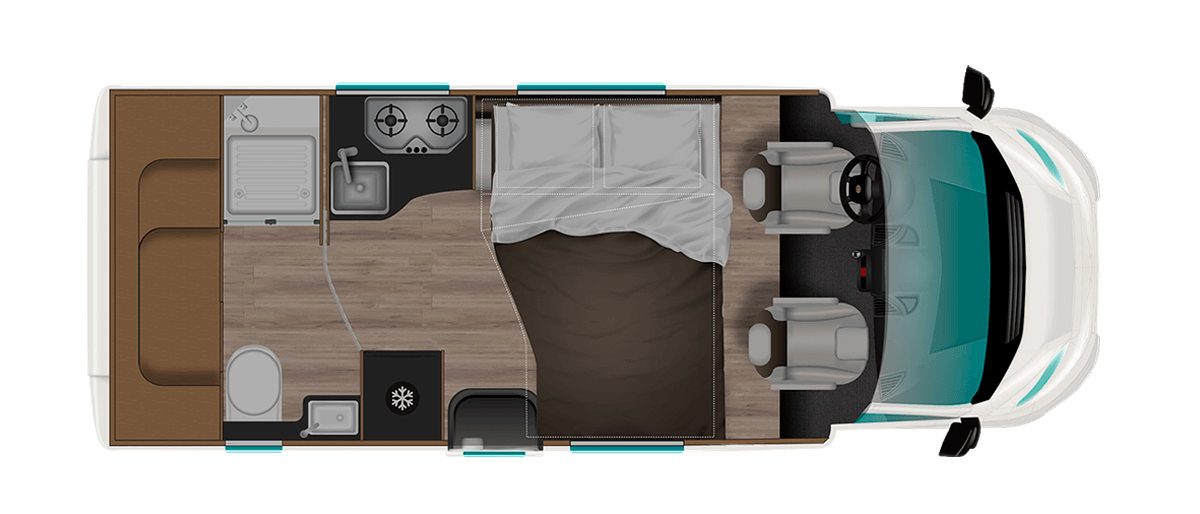

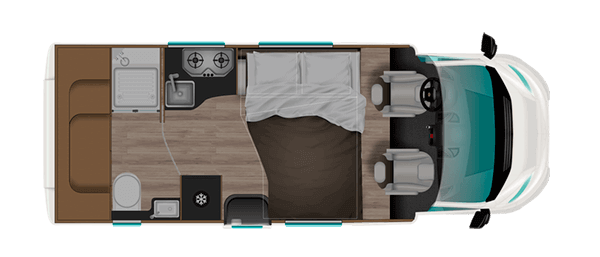

Implantation Nuit ITINEO pc640

6,36 m

Visit the motorhome PC640 !
360 / VIRTUAL VISIT

Want to know more about the PC640 ? Watch our video about this model :

motorhome cosy PC640
THE STRONG POINTS

4(1) Number of seats

5 Number of dining seats

2 + 2 Number of possible sleeping spaces

20 L / 100 L

100 L

(1) Possible reduction in number of registered (driving) seats depending on engine/GVW/GCW (essential for attaching a towbar)/accessories (motorbike rack, etc).

MOTORHOME PC640 - TECHNICAL DETAILS
ESC with Anti Slip Regulation (ASR), Roll Over Mitigation (ROM), Hill Holder, cross wind assist, towing stability control and automatic post-collision braking

KG
PC640
DIMENSION (m)
Overall length   6,36
Overall width   2,32
Overall garage width with wing mirrors open   2,35
Overall height   2,88
PLACES
Registered (driving) seats   4
Dining seats   5
Berths   2+2
WEIGHT (kg)
Gross vehicle weight (GVW)   LIGHT : 3,5 T
Permissible Gross Combined Weight (GCW)   LIGHT : 6 T (1)
Mass in Running Order (MIRO)   2867
Payload   633
CHASSIS
Chassis   CITROËN
Standard engine   2,2 L - 140 ch
Anti-pollution standard   EURO 6.3
Wheelbase (m)   3,8
Extra-wide rear track (m)   1,98
STORAGE HOLD/GARAGE (cm)
Width   71
Length   220
Height (varies by country)   118
Right-side access (H x W)   x 111 x 50
Left-side access (H x W)   x 79 x 37
Heated   Yes
BED SIZES (cm)
Rear bed   -
King size bed extension   -
8 cm headboard bed extension   -
Occasional dinette bed   x1560/1100 x 2020
Drop-down bed   x1490/1250 x 1920
Pull-down cab bed   -
AUTONOMY (litres)
Fresh water   20/100 (c)
Waste water   100
Type of refrigerator   Absorption
Refrigerator volume   136
Gas cylinder capacity   1 x 13 kg propane
CONSTRUCTION
ITINEO LIFE construction   -
Impact-resistant polyester panels   x
Impact-resistant polyester roof   x
Polyester underfloor external protection   x
Floor bodywork in polyurethane   -
Styrofoam insulation (roof, walls and floor)   -
Styrosint insulation (roof, walls and floor)   x
BODYWORK AND OPENINGS
Living area door with two-point lock, fixed window and inbuilt bin   x
Living area door with two-point lock, fixed window   -
Living area door flyscreen   P LIFE
Electromagnetic remote control locking of the cab and living area   -
Insulated fixed single step   -
Electric entry step   -
Living area windows with polyurethane frames   -
Double glazed living area windows with blinds and flyscreen   x
Cab panoramic opening roof   P LIFE
Large lengthwise living room skylight   -
Transparent skylights with flyscreens and blackout blinds   x
Cab bed skylight   -
External lighting above the living area door   P LIFE
Designer rear pillars with LED lights   x
Bodywork colour skirts   -
Bike rack set-up   x
Back panel set-up with inserts for bike rack   -
HEATING
Truma Combi 4 hot water/heating   -
Truma Combi 6 hot water/heating   -
Truma Combi 4 Diesel heating with CP Plus control panel   x
Truma Combi 6 EH Diesel (diesel + electricity) heating with CP Plus control panel & iNet 1 x
Truma Combi 4 heating with CP Plus control panel   -
Truma Combi 6 heating with CP Plus control panel   -
Truma Combi 6 EH (gas + electricity) heating with CP Plus control panel & iNet 1 -
High altitude kit (requires Truma Combi D)   x
230V underfloor heating in living area 7 -
Heated waste water tank 15 -
External boiler inspection hatch (drain access & maintenance)   -
STORAGE
Interior underfloor storage boxes (volume in litres)   -
Sliding exterior storage drawer (volume = 45 litres; max. load = 25 kg) 18 -
Height-adjustable storage hold/garage   -
STYLE
LUGANO furniture with metallic glossy white overhead cupboard doors   x
URBAN furniture with wood finish on overhead cupboard doors   -
Living room furniture with backlit LED racks (storage compartments)   x
Fabric/TEP* style: PEPPER   -
Fabric/TEP* style: NATURAL   -
TEP* style: MAGNETIC   -
TEP* style: MACADAMIA   -
TEP* style: SPIRIT EDITION   x
TEP* style: CAPPUCCINO   -
Bay window net curtain   x
Living area interior lighting   LED
Ambient lighting in the living room/kitchen/bedroom   LED
LIVING ROOM
Telescopic leg / Extra occasional berth   -
5th registered (driving) seat   -
5th registered (driving) seat + telescopic table leg + extra occasional bed   -
5th berth and registered (driving) seat   -
Folding table 1 x
TV space with wiring and TV mount   -
TV space with 12V coaxial wiring   x
Day/night partition   -
Face-to-face bench seat armrests   -
Right-side bench armrest   -
Electrically adjustable, switchable drop-down bed with slat base 45 x 2 pers
KITCHEN
Worktop extension   -
Lighting under the worktop   -
Backlit kitchen window finish   -
Blue backlit LED acrylic strip on kitchen side   -
Spice rack   -
Engraved magnetic wall mount with velcro attachment strips and spice rack   x
Storage under the kitchen unit with pot drawer   -
Stainless steel sink with glossy black glass cover   -
Stainless steel sink   x
Brass kitchen tap with ceramic cartridge   -
Stainless steel stove top with 2 hobs, independent black covers and piezo ignition   x
Stainless steel stove top with 3 hobs, independent black covers and piezo ignition   x
Stainless steel 2-hob stove with glass cover   -
Refrigerator grill covers (for winter use)   -
18-litre oven (no grill) 13 -
20-litre oven (with grill) 15 -
23-litre oven (with grill) 22 -
28-litre oven (with grill) 15 -
BATHROOM
High storage unit with mirror   -
Backlit storage alcove under basin   -
Storage alcoves   -
Central XXL bathroom with double partition   -
Separate shower   x
Privacy curtain for larger bathroom space   -
Shower column with black laminate finish and storage   x
Shower column with Plexiglas finish and shower head   -
Shower column with blue ambient LED lighting   -
DUO'SPACE for optimised space   -
Clothes drying rack   x
Cassette toilet with removable tank, telescopic handle and castors   x
Ceramic cistern camping toilet with removable tank (19 litres), telescopic handle and castors   -
BEDROOM
Permanent bed with aluminium base frame and active multilayer slats, with highly durable Bultex foam mattress   -
Permanent bed with active multilayer slats and highly durable Bultex foam mattress   -
Permanent electrically assisted height-adjustable bed (≈ 30 cm) 15 -
Permanent, electrically assisted height-adjustable bed (≈ 20 cm) 15 -
Wall-mounted wardrobes   -
Bed footboard storage drawer   -
Storage alcoves at the foot of central bed   -
Bed footboard storage   -
Backlit headboard with TEP* finish   -
Adjustable reclining headboard on permanent bed   -
Retractable central bed base   -
Adjustable footboard for easier storage access   -
TV space with wiring   x
TV space with HDMI wiring   -
TV space with HDMI wiring and TV mount   -
Storage hold hatch insulating curtain in rear bedroom 1 -
ENERGY & COMFORT
Outside shower piping   x
Outside shower with cold water 1 -
Liquid electrolyte living area battery with coupler and separator (100Ah)   x
2nd liquid electrolyte living area battery (requires a primary liquid electrolyte living area battery) 24 -
92Ah AGM living area battery 3 -
2nd 92Ah AGM living area battery (requires a primary AGM living area battery) 27 -
'Coming home' mode with automatic awning light and interior ambient lighting   -
Control panel   x
Centralised fuse box with protected 'accessories' outlets   x
External 230V plug   x
Internal 230V plug   3
Internal 12V plug   1
Internal 5V USB port   4
Living area and cab carpet 11 x
Lino protector kit 2 x
Gas regulator valve for using gas while driving (anti-crash system)   -
Control gauge for fresh and waste water tanks   x
Solar panel wiring   -
BASE VEHICLE FITTINGS
2.2-litre 140 hp Citron BlueHDi engine   x
2.2-litre 165 hp Citron BlueHDi engine 20 x
2.2-litre 140 hp Fiat engine (only available with the LIGHT chassis) 20 -
2.2-litre 160 hp Fiat engine (weight of 160 hp/140 hp) 20 -
2.2-litre 180 hp Fiat engine (weight of 180 hp/160 hp)   -
2.2-litre 140 hp Peugeot BlueHDi engine   -
2.2-litre 165 hp Peugeot BlueHDi engine 20 -
ECO PACK: Stop & Start and electronically controlled fuel pump   -
Base vehicle battery isolator switch   -
Stop & Start   P LIFE
AdBlue tank (litres)   20
75-litre diesel tank   -
Fiat automatic 9-speed transmission (requires 16" rims) 15/58(e) -
Electric parking brake(d)   -
LIGHT chassis: option available for GVW 3.65 T (Fiat)   -
HEAVY chassis: GVW 4.4 T for 160 hp and 180 hp (Fiat) 40 -
ABS braking   x
  -
ESP with Traction+ and Hill Descent Control   P LIFE
Traction+ with Hill Descent Control 2 -
3PMSF all season tyres   -
Cruise control with speed limiter   x
Reversing sensor built into the bumper(d)   -
Front windscreen wipers with rain sensor   P LIFE
Driver and passenger air bags   x
TPMS (tyre pressure monitoring system)   P LIFE
2nd remote keyless entry control (RKE)   -
LED day running lights   -
100% LED front lights   -
Front fog lights 1 P LIFE
Automatic headlights   P LIFE
Electric de-frosting wing mirrors   P LIFE
Coach-style wing mirrors   -
Reinforced front axle suspension   x
Stabilising jacks (at the back or in the wheelbase) 5 -
15" steel rims   -
15" light alloy Fiat rims -5 -
16" light alloy Fiat rims (+4.5 cm vehicle height) 12
